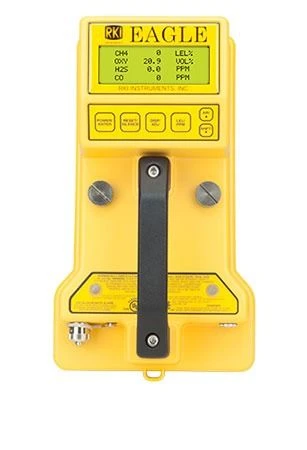

RKI Eagle 72-540 1 – 6 Gas Sample Draw Monitor

Simultaneous detection of up to 6 different gases
Over 400 gas monitoring configurations
Sterilization and Disinfection Monitor
Ozone O3 Detection
Chlorine dioxide (ClO2)
Vaporized hydrogen peroxide H2O2 (VHP)
Wide range of toxic gases
PPM / LEL hydrocarbon detection
Powerful long-life pump up to 125’ range with filters
Up to 30 hours of continuous operation
Dual hydrophobic filters (most versions)
IR Sensors available for CO2, % LEL CH4 or HC, % volume CH4 or HC
Transformer testing version available
Intrinsically safe design, CSA (C / US) & UL classified (most versions)
Complies with EPA Method 21

Gas	Measuring Range	*Accuracy Which ever is greaterStandard**

Hydrocarbons (CH4, std)	0 – 100% LEL 0 – 50,000 ppm	± 5% of reading or ± 2% LEL () ± 50 ppm or ± 10% of reading ()
Oxygen (O2)	0 – 40%	Vol. ± 0.5% O2
Carbon Monoxide (CO)	0 – 500 ppm	± 5% of reading or ± 5 ppm CO (*)
Hydrogen Sulfide (H2S)	0 – 100 ppm	± 5% of reading or ± 2 ppm H2S (*)

Ammonia (NH3)	0 – 75 ppm
Arsine (AsH3)	0 – 1 ppm, 0 – 200 ppb
Chlorine (Cl2)	0 – 3 ppm
Chlorine Dioxide (ClO2)	0 – 1 ppm
Fluorine (F2)	0 – 3 ppm
Hydrogen Fluoride (HF)	0 – 9 ppm
Hydrogen Chloride (HCl)	0 – 15 ppm
Hydrogen Cyanide (HCN)	0 – 30 ppm
Hydrogen Peroxide (H2O2)	0 – 3 ppm
Hydrogen Selenide (H2Se)	0 – 0.2 ppm
Hydrogen Sulfide (H2S)	0 – 1 ppm, 0 – 30 ppm
Nitrogen Dioxide (NO2)	0 – 15 ppm
Ozone (O3)	0 – 1 ppm
Nitric Oxide (NO)	0 – 100 ppm
Phosphine (PH3)	0 – 1 ppm
Silane (SiH4)	0 – 15 ppm
Sulfur Dioxide (SO2)	0 – 6 ppm

Carbon Dioxide (CO2) (IR Sensor)	0 – 5,000 ppm, 0 – 10,000 ppm 0 – 5% Vol. 0 – 20% Vol. 0 – 60% Vol.	± 5% of reading or ± 2% of full scale (*)
Methane (CH4) (IR Sensor)	0 – 100% LEL, 0 – 100% Vol.
Isobutane (iC4H10) (IR Sensor)	0 – 100% LEL, 0 – 30% Vol.
