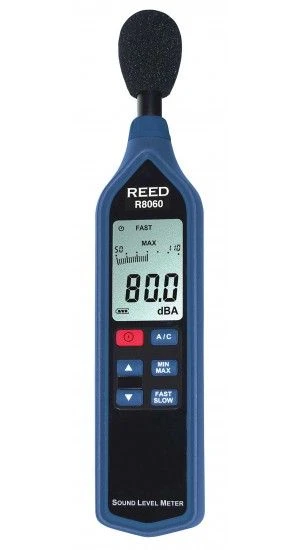

REED R8060 Sound Level Meter with Bargraph

This sound level meter meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.

Features

• High accuracy of ±1.4 dB meets Type 2 standards
• Triple range measurement (60dB dynamic range)
• A & C frequency weighting
• Fast & Slow time weighting
• Easy-to-read LCD display
• Digital analog bargraph
• Data hold and Min/Max hold
• AC/DC output signal for use with dataloggers
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

Measuring Ranges	30-130dB Low: 30-90 dB Med: 50-110 dB High: 70-130 dB
Dynamic Range	60 dB (in each range)
Accuracy	±1.4 dB
Resolution	Digital: 0.1 dB Analog: 2dB
Response Time	Digital: 500ms Analog: 100ms
Frequency Range	20 Hz to 8 kHz
Frequency Weighting	A, C
Time Weighting	Fast/Slow (125ms and 1s)
Microphone	0.5″ (12.7mm) electret condenser
Digital Analog Bargraph	Yes (30 segment)
Display	4-digit LCD
Min	Yes
Max	Yes
Alarm Indicators	Under and Over (visual on-screen)
Auto Shut-off	Yes (after 30 mins/off)
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	9V battery
Output	Yes (AC/DC)
Battery Life	Approx 50 hours
Product Certifications	CE, IEC 61672-1 Class 2
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10-90%
Dimensions	10.2 x 2.2 x 1″ (258 x 55 x 25mm)
Weight	6.5oz (185g)
